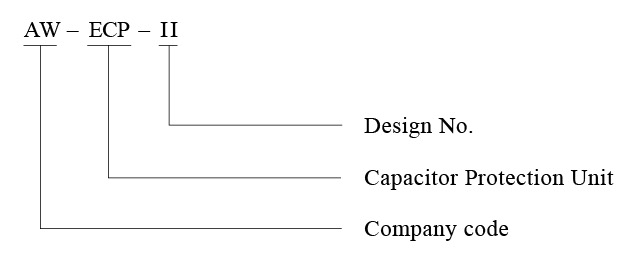

• Applications: Cap protection
• Human-machine interface: 3.5 inch screen
• Communication interface: RS485
• Number of protection groups: One Group
• Records: Protection records
• Working power supply: AC/DC220V±15%
• Communication protocol: Modbus/103
• Protection item:

     Overvoltage/undervoltage protection
     Open delta voltage / differential current protection
     Three-stage interphase current protection
     Unbalanced current protection
     Opening protection

Basic parameters:

• Size：205mm×82mm×135mm（L×W×H）
• Working power supply:AC/DC220V±15%

Rated sampling Parameter：

• Voltage：AC100V
• Current：1A/5A

Input circuit:

• Protect sampling input:

     Three-phase current of the bus voltage and capacitor, differential current /open delta voltage may be measured.

• Current: 0.1A～1A/5A
• Voltage: 0～150V
• Open delta voltage: 0.1～100V
• Comprehensive Error: <0.5%

Output circuit:

• Number of output circuits:

     1-channel Closing output (Pulse), 1-channel Local trip output(Pulse), 1-channel upper trip output(Pulse), 1-channel Latching output(Holding), 1-channel Alarm Output(Holding).

• Relay capacity: AC250V，16A（Purely resistive）
• Pulse holding time: 2s

Input:

• Input feedback of capacitor
• Capacitors outlet cabinet position signal
• Remote opening (open protection) signal
• Remote closing signal

Use environment:

• Temperature: -20℃ ~ +70℃（or -40℃ ~ +85℃）
• Humidity: ≤95%
• Degree of pollution: III
